Solutions for cost-effective and high-quality machining of aerospace thrust fittings in titanium
The thrust fitting is normally produced in titanium and is located between the wing and the engine. The main challenge is machining with long overhang tools.
Tooling solutions for aerospace thrust fittings

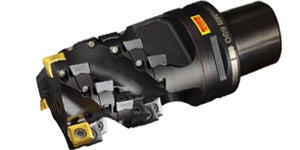

CoroMill® 690 – Developed specifically for high-productivity 2D profile milling of titanium components
Inserts are securely fastened by iLock™ technology. By equipping every insert pocket with threaded coolant holes with nozzles for high-pressure coolant delivery, you can apply maximum coolant where required.
CoroMill® 690 – The cutting edge for titanium milling
2D profile milling long overhangs
The Coromant Capto® modular tool holding system enables tools to be assembled to the required length, while maintaining high stability and smallest run-out. Keep the tooling assembly as rigid and short as possible. Choose the largest possible adapter diameter/size. Use Coromant Capto® adapters with oversized cutters to avoid reduction adapters. For small milling cutters, use a tapered adapter if possible.
Coromant Capto® modular tool holding system
Silent Tools™ – Tool holding designed to minimize vibrations in long overhang machining
