Solutions for cost-effective and high-quality machining of aerospace shafts in heat resistant super alloys
Made from high-alloy steel or Inconel, the major challenges when machining shafts are the length and internal features of the component. The most significant development in shaft manufacturing comes from the evolution of multi-task machines, where Coromant Capto® and Silent Tools™ have proved to be perfect partners.
Tooling solutions for aerospace shafts in heat resistant super alloys
CoroTurn® Prime and PrimeTurning™
CoroTurn® Prime and PrimeTurning™ all-directional turning method and tools offer highly productive machining with excellent chip control. Combined with Silent Tools™ dampened adaptors, this revolutionizing concept can achieve even more productive machining.

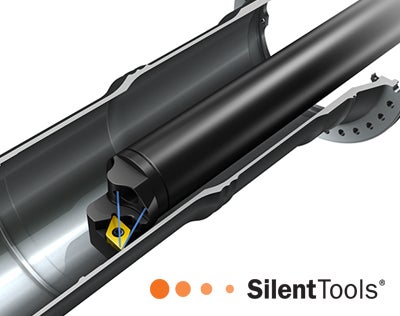

Reduce vibration with Silent Tools™ unique damping technology
A standard Silent Tools™ boring bar program up to 250 mm diameter and 14 × diameter to length capability is available. This range of tools can produce component features to an extraordinarily high standard. The serration lock (SL) coupling is now equipped with a full range of cutting heads with HPC capability.
Silent Tools™ application guide
Coromant Capto® – three systems in one
Coromant Capto® is a modular quick change tooling concept offering three systems in one. The same tools can thus be used in the entire workshop, offering unique flexibility, optimal rigidity and minimized tool inventory.
Learn more about Coromant Capto®
Coromant Capto® Plus
Access real-time data from your driven tool holder.
CoroTurn® SL — the flexible modular tooling system
The CoroTurn® SL modular system with SL70 cutting heads offers easy access to the flange around the shaft with precision nozzles as standard. The rigid CoroCut® 1-2 parting and grooving system is often used with the -TF or -TM turning/grooving geometries for high-alloy steels.
Stable internal profiling with CoroTurn® TR
CoroTurn® TR offers secure and productive internal profiling with high tolerances, also including a three-pass method for extra fine tolerances.
Use with Silent Tools™ Plus turning adaptors, which feature connectivity capability for digital machining and include a Wedge Lock quick-change interface between the adaptor and cutting head for high repeatability.
Internal machining of small, high-quality features with CoroTurn® XS
CoroTurn® XS is a system for solid carbide tools designed for exact cutting edge positions, enabling high precision and repeatability in turning machining.
CoroMill® Plura solid end mills
CoroMill® Plura is a range of high-quality solid carbide end mills that offer productive, efficient and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing and thread milling, CoroMill® Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRC.
More details about CoroMill® Plura ISO S
CoroMill® 316 with exchangeable milling heads
The CoroMill® 316 exchangeable-head milling system offers solutions for high feed face milling, slot milling, helical interpolation, shoulder milling, profile milling and chamfer milling of components in various material groups from ISO P to ISO S. The exchangeable milling heads allow you to quickly, easily and accurately switch between various operations. The end mills are even suitable for five-axis milling of flanks, which often requires tapered tools for stability at longer tool reaches.
Learn more about CoroMill® 316
External and internal grooving with CoroMill® 328
The CoroMill® 328 grooving cutter offers high performance and cost-efficient machining with high productivity.
Learn more about the CoroMill® 328
Short hole drilling with CoroDrill® 880
The CoroDrill® 880 indexable insert drill is a cost-efficient solution for short hole drilling. The tool offers a secure process with a predictable and consistent tool life.
Learn more about the CoroDrill® 880
Highly secure drilling with the CoroDrill® 860
The CoroDrill ® 860 with -SD geometry is a short hole drilling solution optimized for machining nickel-based ISO S materials. This drill offers a consistent and predictable tool life with high dimensional accuracy and excellent hole quality.
Learn more about the CoroDrill® 860
CB7014 high-speed CBN turning solution for nickel-based alloys
Finish turning of aerospace components involves challenging operations performed in demanding ISO S materials. Using CBN inserts allows for increased cutting speeds and improved productivity while maintaining good surface integrity on the component. CBN inserts optimized for high speed finishing of nickel-based heat resistant super alloys are now available as a stocked standard solution.
