Steering knuckle
The steering knuckle is the part that contains the wheel hub or spindle and attaches to the suspension components. It is variously called a steering knuckle, spindle, upright or hub. The wheel and tire assembly attach to the hub or spindle of the knuckle where the wheel rotates while being held on a stable plane of motion by the knuckle/suspension assembly. Steering knuckles come in all shapes and sizes. Their design differs to fit all sorts of applications and suspension types.
Benefits of the Sandvik Coromant solutions
- Secure machining process
- Increased machine utilization and fewer tool changes using multi-functional tools designed to specifications
- Excellent component quality, better surface finish and ability to keep tight dimensions and tolerances
- Long and consistent tool life, leading to improved machine utilization, fewer production stops and tool changes, and reduced costs
- Higher cutting data, giving increased output of components and reduced cost per component
Tooling solutions that support the manufacturing of knuckles and covers:
ISO K solutions
CoroMill® 745 – Multi-edge face milling cutter for best production economy
The patented insert positioning system provides the same light cutting action and performance as a positive, single-sided milling cutter, but with a total of 14 cutting edges.
Read more
CoroMill® 425 – Finishing concept for cast iron face milling
Specifically designed for the automotive business. The accurate and reliable adjustment system makes CoroMill 425 the easiest system on the market to use.
Read more
CoroDrill® 460
CoroDrill 460 is a multi-application, high-performance drill that can be used across a wide range of materials. This drill provides high-capacity utilization, flexibility and versatility.
Read more
CoroDrill® 860 – Optimized multi-material drilling solution
CoroDrill® 860 with -GM geometry is a high-performance drilling solution for short holes, primarily in ISO P, M, K and H materials. It performs competitively in ISO N and ISO S materials as well. The drill offers robust process security, high hole integrity and excellent tool life
Read more
CoroDrill® 400 and 430 – Flexible and precise drilling solutions
Customized tooling for the automotive industry. The straight-flute CoroDrill 400 and 3-flute CoroDrill 430 provide highly productive hole making in GCI, CGI and nodular cast iron, resulting in low cost per hole.
Read more
CoroDrill® 880 indexable drill
CoroDrill 880, with its unique insert geometries and configuration, creates a balanced, step-by-step entrance into the workpiece. This reduces cutting forces to less than half that of typical insert drills, and virtually eliminates deflection on entry.
Read more
CoroTap™ 100 KM – Straight-flute tap
Superior tool life and high productivity are just some of the benefits offered by this exceptional tool. Suitable for both through and blind holes
Read more
CoroMill® 331 – Multi-purpose side and face milling cutter
CoroMill 331 is a multi-purpose side and face cutter with high-precision capability for numerous operations. The cutter is the most productive of its kind for producing grooves and parting off.
Read more
ISO N solutions
CoroMill® Century – Light cutting face mill for high-speed finishing
CoroMill Century is a face mill tool system with aluminum or steel body for high-speed machining. The tool is designed with a serrated insert interface for safe performance and reduced run-out.
Read more

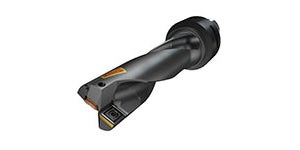

CoroDrill® 880 indexable drill
CoroDrill 880, with its unique insert geometries and configuration, creates a balanced, step-by-step entrance into the workpiece. This reduces cutting forces to less than half that of typical insert drills, and virtually eliminates deflection on entry.
Read more
M5B90 – Super finishing face milling cutter for aluminum
Finishing face milling concept developed for automotive aluminum components such as cylinder heads, blocks, housings, covers and all components with a wide material engagement.
Learn more about the M5B90 milling cutter
M5C90 – One-shot face milling cutter for aluminum
M5C90 is a concept face-milling tool for high-speed direct finishing of aluminum automotive parts such as cylinder heads, cylinder blocks and all aluminum parts within a wide cutter engagement.
More about the M5C90 milling cutter
M5F90 – One-shot roughing and finishing of thin-wall aluminum parts
M5F90 is a concept face-milling cutter that enables roughing and finishing of thin-wall automotive aluminum components in a single operation.
Read more about the M5F90 milling cutter
M5Q90 – For first-stage roughing operations
M5Q90 cleans the surfaces of newly casted aluminum cylinder heads and engine blocks in one smooth operation, without burring.
Read more about the M5Q90 milling cutter
M5R90 – A new solution for roughing and semi-finishing of aluminum automotive parts
M5R90 is the first choice for roughing to semi-finishing in shoulder milling operations of automotive aluminum components such as cylinder blocks, cylinder heads and transmission housings.
Read more about the M5R90 milling cutter
* For engineered tooling solutions, please contact your local Sandvik Coromant sales representative.
