CoroMill® Plura solid carbide end mill for heavy duty milling
Roughing with the highest-performing tool life in steel and stainless steel
A game-changer
An undisputable game-changer, CoroMill® Plura HD brings the highest performing tool life to the market in ISO P and ISO M. CoroMill® Plura HD is the first choice for heavy-duty applications in ISO P and ISO M materials of up to 2×D roughing in steel and stainless steel.

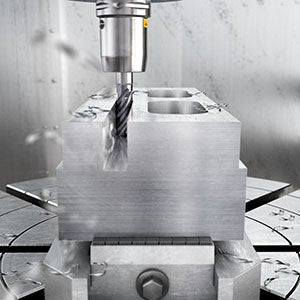

Exceptional metal removal rates
With its optimized flute shape for effective chip evacuation and internal coolant for stainless steel, the CoroMill® Plura HD ensures world-class productivity with exceptional metal removal rates and high process security.
Zertivo™ 2.0
Zertivo™ 2.0 coating technology offers superior tool life and high productivity, while providing unparalleled process security in wide-ranging applications.
When to use
- First choice for roughing in steel or stainless steel with the highest productivity
- 2xD full slot capabilities and excellent ramping capabilities
Benefits and features
Stable milling with low vibration
- Differential pitch
- Cutting edge preparation and relief design
High metal removal rate
- Optimized flute design
- Tough grades
- Stainless steel (M) geometry with radial exit internal coolant for improved chip and temperature control
- Steel P-geometries available with 4 and 5 teeth, based on the hardness of your material: 4 teeth for HRc ≤ 48 HRc, 5 teeth for HRc ≤ 30 HRc
Superior tool life
- Grades PB2M and M2CM feature our Zertivo™ 2.0 coating technology for superior tool life in steel (ISO P) and stainless steel (ISO M)

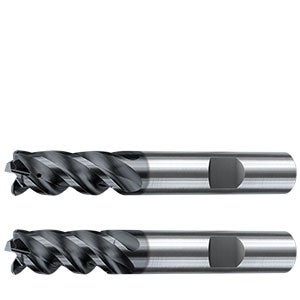

Product range
4 flutes: 2P342-PA / PB, 2S342-PA / PB
- APMX: 2xD
- Diameter range, mm (inch):
2–25 (0.125–0.75), 3–20 (0.125–0.75) - Grade: P2BM
5 flutes: 2F342-PD / 2N342-PD
- APMX: 2xD
- Diameter range, mm (inch):
6–20 (0.25–0.75), 6–25 (0.25–0.75) - Grade: P2BM
4 flutes: 2P342-CMB, 2P342-MB, 2S342-CMB
- APMX: 2xD
- Diameter range, mm (inch):
6–25 (0.25–0.75), 6–16, 6–20 (0.25–0.75) - Grade: M2CM
Tool holding recommendation
Use the CoroChuck™ 930 to maintain efficient production thanks to quick and easy tool set-ups and changes
Additional information
Also available in a Tailor Made version within the Customized solutions range
A reconditioning service is available
 | Shoulder milling | + + + |
 | Slot milling | + + + |
 | Pocket milling | + + + |
 | Helical interpolation | + + + |
 | Ramping | + + + |
 | Plunge milling | + + |
| Shank | Cylindrical, Weldon | |
| Face geometry |     | |
| Grade | 1730, 1740, P2BM, M2CM | |
| ISO material |     |
Stainless steel
Competitor comparison ISO P
