Coromant® EH - Modular system
Tooling flexibility for small diameters
Access with shanks
Shanks in different lengths and materials enable you to bore hard-to-access features with ease.
Productivity with integrated machine adaptors
The short gauge length of an integrated machine adaptor plus cutter head makes it possible to increase productivity even in small, vibration-sensitive machines.
Clearance and reach
The flexible range of undersized shanks in various lengths enables milling of deep shoulders with stability and clearance.
Modular system for small diameters
The modular system Coromant EH enables you to get the most out of your cutting edge. Get the required reach and accessibility with shanks and modular adaptors. In short overhang applications, it can be possible to increase your productivity with integrated machine adaptors.
The modularity eliminates the need for a separate tool for each machine, component and feature. Combine different tool holders and cutter heads to get an optimized tooling solution for all your machining.

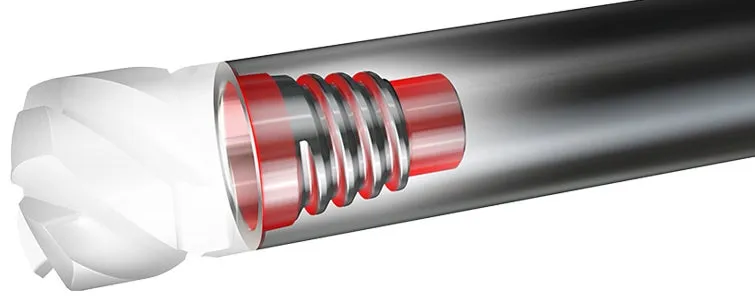

The Coromant EH coupling is based on a centering screw that facilitates quick mounting of heads. The coupling has a physical stop which makes it easy to feel when the head is correctly tightened and helps to not overstress the clamping.
Application and tool variants
Large machining centres
Use undersized shanks for stability and clearance when machining with long overhang.
Steel
Heavy metal
Solid carbide
Small to medium machining centres
The short tool assembly consisting only of the integrated machine adaptor and cutter head gives high productivity when the gauge line is critical.
Steep taper
HSK
Medium to large machining centres and multi-task machines
Modularity with Coromant Capto® in different lengths offers accessibility for hard-to-reach features.
Coromant Capto®
Turning centres with driven tool holders
The short tool assembly consisting only of the adaptor and head gives high productivity when the gauge line is critical or the swing diameter is limited.
Coromant Capto®
ER collet
Shoulder and slot milling
- CoroMill® 316
High metal removal rates and large engagements - CoroMill® 390
Versatile concept perfect for mixed production - CoroMill® 490
Economical four-edged concept
Profile milling
- CoroMill® 316
Superb surface finish and high productivity - CoroMill® 216
Large cutting-depth capacity - CoroMill® 300
Round insert cutters
Face milling
- CoroMill® 316
High feed face milling - CoroMill® 490
General face milling - CoroMill® 415
High feed face milling
Chamfer milling
- CoroMill® 495
Front and back chamfers - CoroMill® 316
15, 30, 45, 49 and 60 degree convex radius chamfers
Boring
- CoroBore® 825
Fine boring, hole diameter 19–36 mm (0.748–1.417 inch) - CoroBore® 824
Fine boring, hole diameter 1–20 mm (0.039–0.787 inch) - CoroBore® BR10
Rough back boring - CoroBore® BR20
Rough boring
Solutions are available for use of solid carbide milling tools, drills and taps with Coromant EH adaptors.
Higlights
CoroMill® 390 with size 07 inserts
CoroMill® 390 with size 07 inserts combines all of our milling expertise into one versatile milling tool.
Solid carbide milling heads
Versatile in the widest sense of the word, CoroMill® 316 can be applied for high feed face milling, slot milling, helical interpolation, shoulder milling, profile milling and chamfer milling.
Twin-edge rough boring tools
CoroBore® BR20 offers you secure and productive rough boring. Combined with Coromant EH coupling, it is a flexible solution for rough boring with small diameter tools.
